1. Product introduction of YLS series

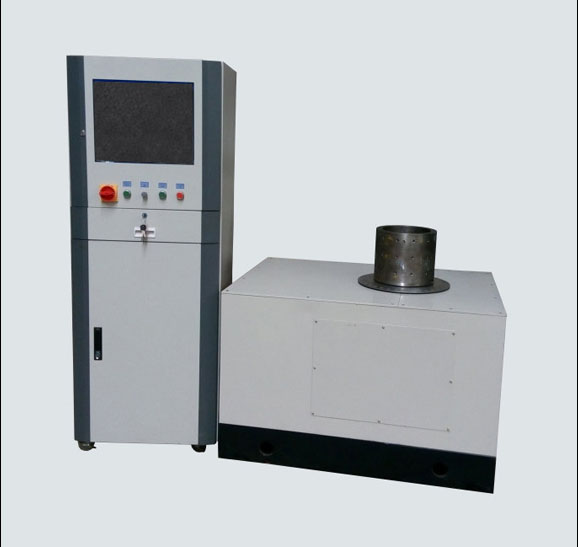

YLS series is a double-sided vertical dynamic balancing machine, which can be used for both double-sided dynamic balance measurement and single-side static balance measurement. Parts such as fan blade, ventilator blade, automobile flywheel, clutch, brake disc, brake hub, hydraulic coupling and so on which need to balance on one side can be measured on this series of equipment. Such as washing machine drum, pharmaceutical machinery agitator, centrifugal drum, special requirements of the brake hub and other work pieces that need to balance on both sides can also be balanced on the edge of the series, just replace the fixture to install the work piece, you can balance check. The products are divided into "A" and "Q" models. "A" type for frequency converter speed regulation, manual clamping workpiece; Q "type for variable frequency speed pneumatic clamping workpiece. Industrial control computer for data processing, color screen real-time display of unbalanced value, phase Angle and real-time speed, and equipped with industrial cabinet, and mechanical parts of the balance machine system, easy to save parameters, printing, high precision system test, reliable use, easy maintenance, more advanced than other test systems. And according to the customer's workpiece for customers to customize a variety of general fixture or special fixture
2. Measurement system
Industrial control computer, 19 "LCD display (can be customized with touch screen), Windows operating platform
★ with the company's independent development of double vertical balance machine balance measurement system. The software has complete functions, the operation all USES the Chinese menu structure, the operation step text prompt
★ measuring system performance is strong: arbitrary workpiece calibration, measuring speed range wide 80 RPM starting, measuring speed block, unbalance amplitude and phase stability
★ software with allowable unbalance calculator, the operator only needs to input the allowable vibration of the workpiece precision level, mass, working speed, and radius click to calculate the number of grams to allow the remaining unbalance of the workpiece
★ software completely independent development, according to customer requirements to modify or add software functions (such as scanning the two-dimensional code to add the workpiece identity name to the measurement results to save for future quality investigation)
Please contact the manufacturer for details of the software functions
3. Mechanical parts and controls
★ the equipment using casting base and support equipment has enough rigidity and stability
★ spindle using 45# carbon structure steel, after forging, quenching, fine grinding, axial and radial runout are within 0.02mm;
★ the use of a special balanced vibration structure, the measurement of translation can also be measured at the same time the twisting signal, to ensure the measurement accuracy
★ power transmission adopts multi-wedge belt, stable and reliable transmission, small impact on balance measurement
★ spindle belt synchronous rotation dial, easy to find the uneven measurement Angle
★ reliable quality of equipment, the use of frequency conversion speed control system, motor soft start soft stop on the impact of the equipment is small, extended the service life of the equipment. Equipment can work continuously, maintenance is simple and convenient
Note: please contact us for more information about the equipment
Manufacturer standard configuration parameters
Yls-42a (Q) yls-100a (Q) yls-200a (Q)
The workpiece mass range is kg 3-42 5-100 10-200
Workpiece diameter mm Φ Φ Φ 800 800 800
Equilibrium speed r/min 100-800 100-800 100-800
Minimum residual unbalance ≤2gmm/kg ≤2gmm/kg ≤2gmm/kg
Unbalance reduction rate % ≥90% ≥90%
Motor power 1.5kw 4KW 4KW
Workpiece correction mode single or double-sided single or double-sided single or double-sided single or double-sided
Clamping device: manual clamping (pneumatic clamping) manual clamping (pneumatic clamping) manual clamping (pneumatic clamping)
★ the above is the factory standard configuration equipment parameters. We support product determination, according to the needs of customers for the equipment structure of the corresponding equipment allowed to change; For example, servo motor can be used to achieve automatic positioning function
★ if necessary equipment can be matched with electrical appliances for single-phase AC220V, 50/60hz power supply
★ the manufacturer provides the workpiece in the balance machine balance when the use of customized services
★ equipment can be added without affecting the measurement of performance of reasonable accessories, such as protection
